Rivet | Material | ||||||||||
78o Csk Head | 100o Countersunk Head | Round Head | Flat Head | Brazier Head | Universal Head | ||||||
Older Specifications | AN420 | ||||||||||
Old Specifications | AN425 | AN426 | AN427 | AN430 | AN435 | AN441 | AN442 | AN455 | AN456 | AN470 | |
New Specifications | MS20426 | MS20427 | MS20613 MS20615 | MS20470 MS20613 MS20615 | |||||||
![]() | A 1100, 3003 | AN425 | AN426 MS20426 | AN430 | AN442 | AN455 | AN456 | AN470 MS20470 | |||
![]() | AD 2117 | AN425 | AN426 MS20426 | AN430 | AN442 | AN455 | AN456 | AN470 MS20470 | |||
![]() | D 2017 | AN425 | MS20426 (inactive) | AN427 MS20427 (inactive) | AN430 | AN442 | AN455 | AN456 | AN470 MS20470 (inactive) | ||
![]() | DD 2024 | AN425 | MS20426 (inactive) | AN427 MS20427 (inactive) | AN430 | AN442 | AN455 | AN456 | AN470 MS20470 (inactive) | ||
![]() | B 5056 | AN426 MS20426 | AN430 | AN442 | AN455 | AN456 | AN470 MS20470 | ||||
![]() | 7075 | AN425 | AN430 | AN442 | AN455 | AN456 | AN470 MS20470 | ||||

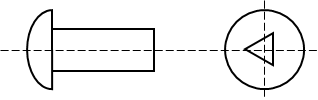

![]() | P Carbon Steel | AN427 MS20427 | AN435 MS20613 | AN441 | MS20613 | ||||||
![]() | F CRES | AN427 MS20427 | AN435 MS20613 | MS20613 | |||||||
![]() | T Titanium | AN426 MS20426 | AN441 | ||||||||
![]() | E 7050 | AN426 MS20426 | |||||||||
![]() | M Monel | AN427 MS20427 | AN435 MS20615 | MS20615 |
