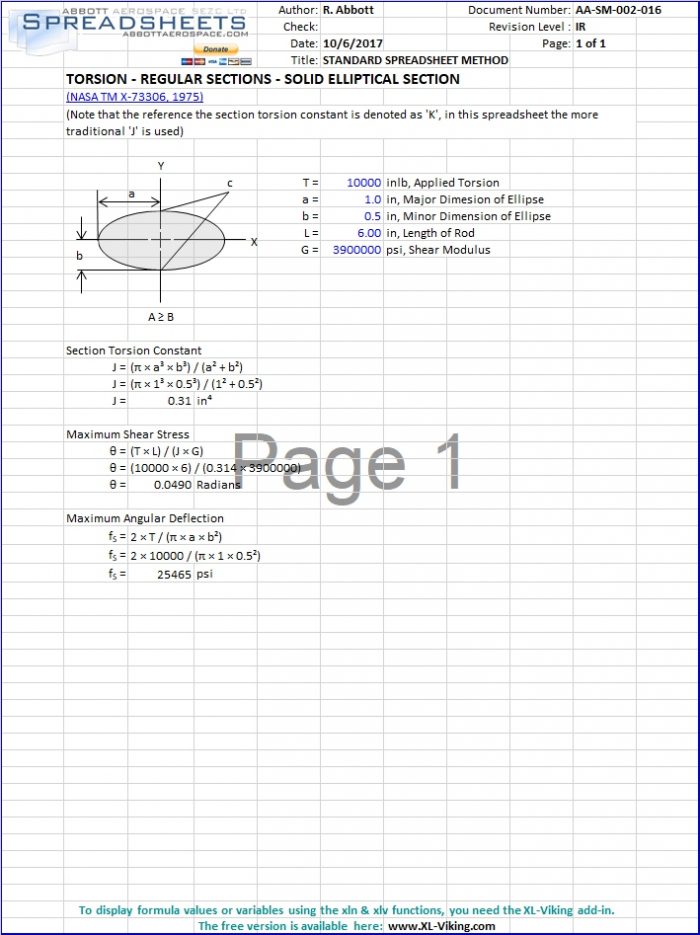

AA-SM-002-016 Torsion - Regular Sections - Solid Elliptical Section

Free spreadsheet analysis tool to calculate the peak shear stress and angular deflection of a solid regular cross section of a finite-length rod/bar, given the cross-section, length and shear modulus, Based on methods in NASA TM-X-73306 and AFFDL-TR-69-42.



FileAction
AA-SM-002-016 Torsion - Regular Sections - Solid Elliptical Section.xlsxDownload
